Air Release Valves - KN-SERIES

GENERAL FEATURES

DOWNLOAD PDF

• 100% Tight Shut Off
• Renewable Seats
• High Discharge Rated Orifice
• RT, PMI & MPT Available on Request
• Isolation Valves Available on Request

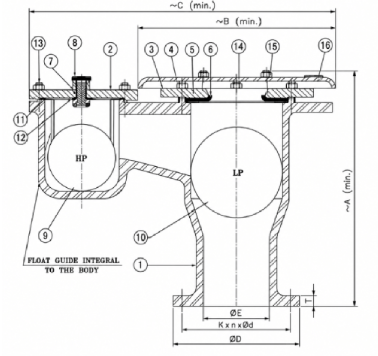

Part No	Component	MOC
1	Body	CI, DI, FG210, 216 WCB, CF8/8M, CF3/3M
2	H.P. Cover	CI, DI, FG210, 216 WCB, CF8/8M, CF3/3M
3	L.P. Cover	CI, DI, FG210, 216 WCB, CF8/8M, CF3/3M
4	Cowl	Carbon Steel / Stainless Steel
5	Renewable L.P Seat	SS 304, SS 316
6	L.P Seat Ring	Rubber, PTFE
7	Renewable H.P Seat	SS 304, SS 316 - Rubber Impregnated
8	H.P. Side Plug	SS 304, SS 316
9	H.P. Float	SS 304, SS 316
10	L.P. Float	SS 304, SS 316
11	Cover Gasket	EPDM, PTFE
12	Seat Gasket	EPDM, PTFE
13	Studs & Nuts	IS 1367, A193 B7, B8, B8M
14	Studs & Nuts	IS 1367, A193 B7, B8, B8M
15	Studs & Nuts	IS 1367, A193 B7, B8, B8M
16	Name Plate	Aluminium, Stainless Steel
